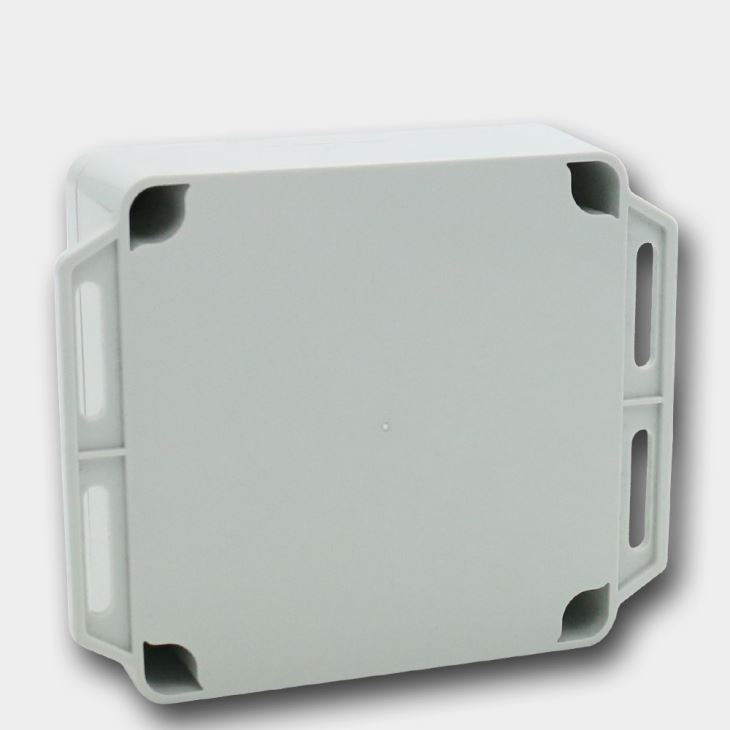

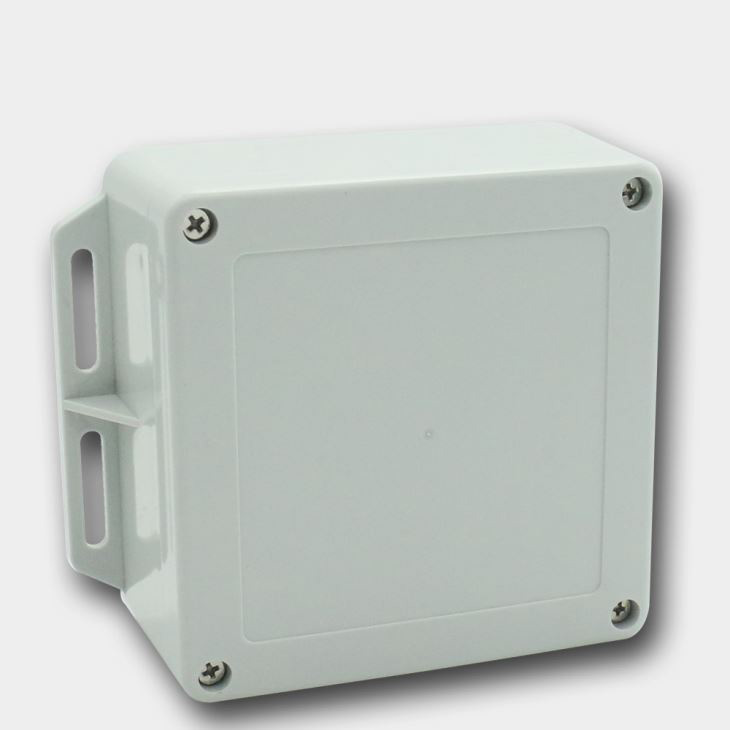

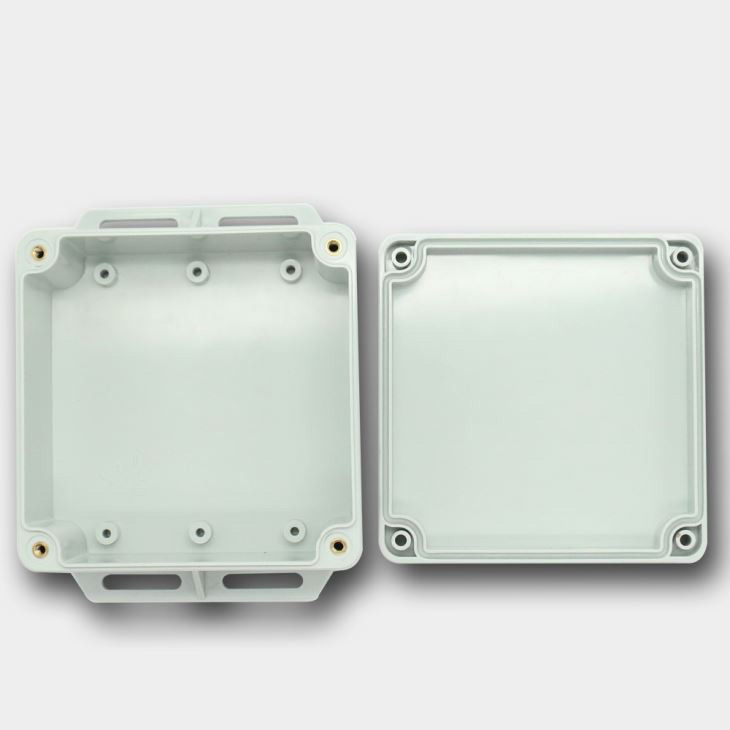

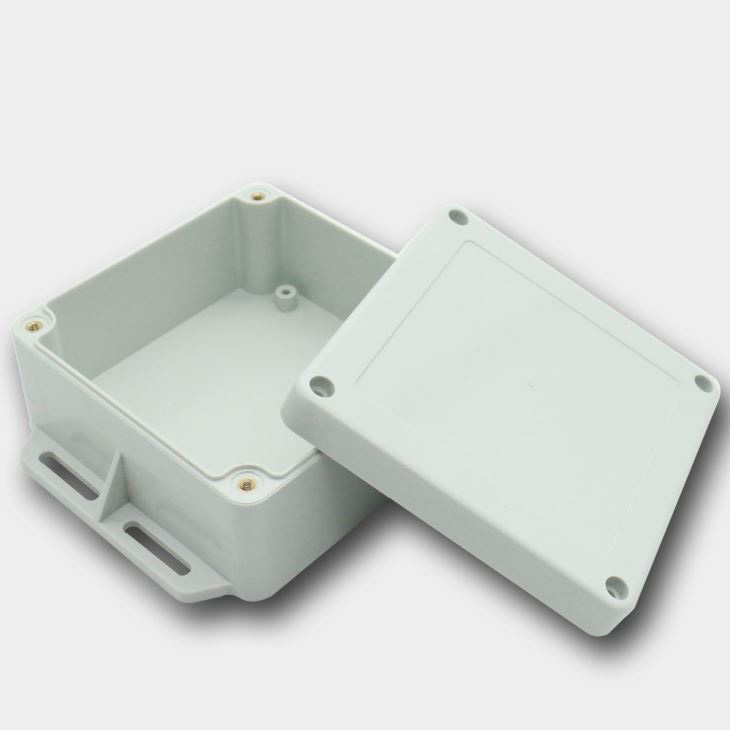

Square Flanged Enclosure

As the professional manufacture, we would like to provide you Square Flanged Enclosure. And we will offer you the best after-sale service and timely delivery.
Item No.:RPE152
Material:High-impact ABS
External Dim(mm):120*120*60

Model:RPE152

Send Inquiry

Product Description

Square Flanged Enclosure

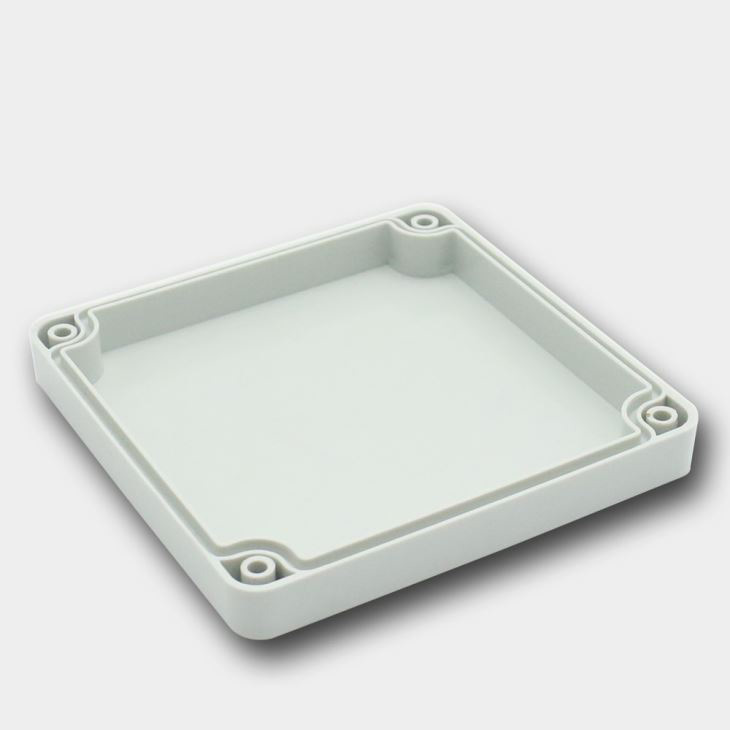

1. A silicone rubber gasket is for better sealing.

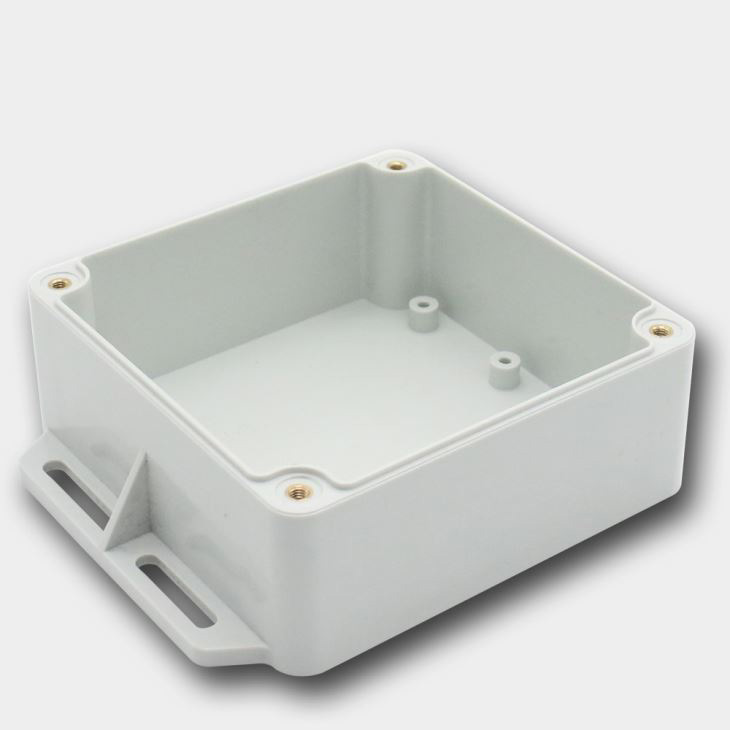

2. Bosses on internal base allow PCB fixing.

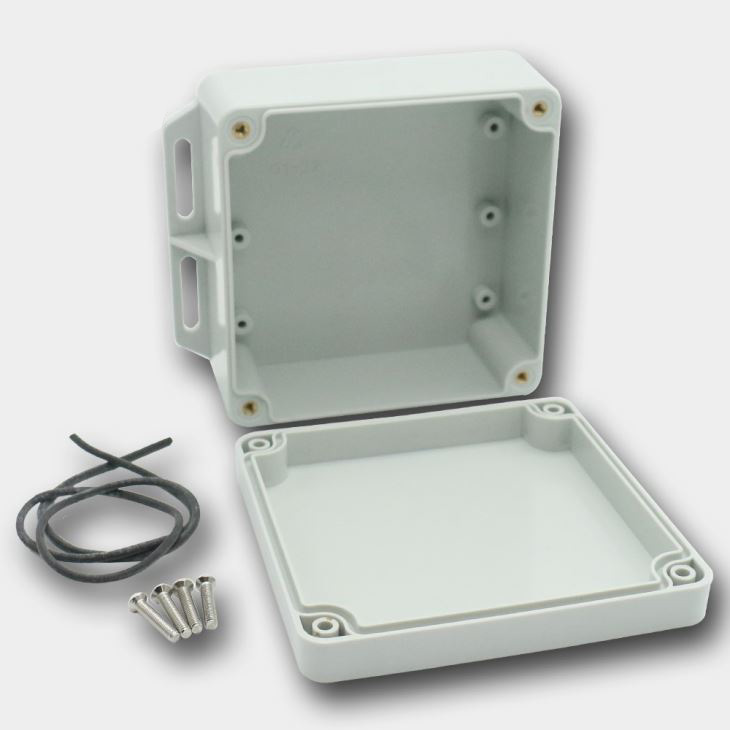

3. Four stainless steel screws fix in the lid.

4. Applied in electronics, instrumentation, etc.


Item No.:

RPE152

Material:

ABS

Dimension(mm):

120*120*60

G.W.(kg)

0.2

Operating Temperature:

-20℃ ~ 90℃

IP Rating:

IP65

Color:

Light grey or as required

Logo:

Silkscreen Printing

Holes:

CNC/Laser/Drilling
